Equipment information
Equipment / machine name

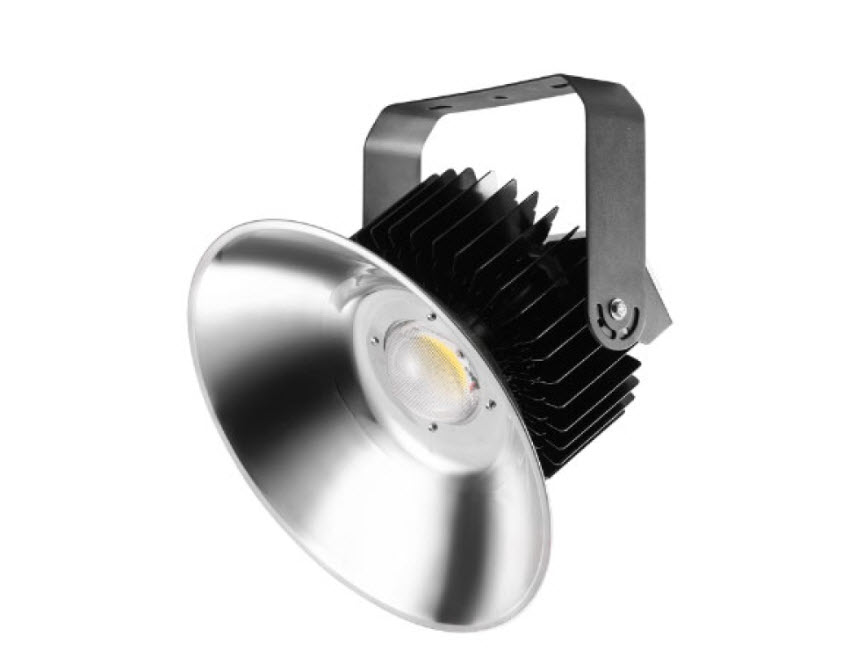

China Ecotek Industrial LED Lights (BV120B / BV240)
Technical specifications & Operation
Main specifications
| Specification | BV120B (120W) | BV240 (240W) |
|---|
| Light source | Ceramic COB chip | Ceramic COB chip |
| Beam angle | 60/90/120 degrees | 25/60/90/120 degrees |
| Color temperature | 3000K/4500K/5500K | 3000K/4500K/5500K |
| Brightness | >=120Lm/W | >=120Lm/W |
| Color rendering index | 80Ra | 80Ra |
| Power supply | IC Driver AC 220V | MEAN WELL AC 220V/90-305V/180-520V |
| Operating environment | -25C~50C | -25C~50C |
| Protection rating | - | IP68 (power supply IP65) |
| Connector base | E40 | - |
| Weight | 1.2Kg | 4.3Kg |
Operating principle
120W screw-base LED light (BV120B): 1KV surge-protected AC IC circuit, ceramic COB chip, standard E40 base for direct replacement of old mercury lamps. 240W LED High Bay (BV240): ceramic COB superconductive plate, non-aging optical lens, patented integrated heat dissipation system, suitable for dusty, hot and humid environments.
Advantages & Price
Key advantages
1KV surge protection; concentrated COB light source with low thermal resistance coefficient; integrated heat dissipation; lightweight design; BV240 meets IP68 standards for harsh environments.
